What is a horizontal centrifugal pump?
The main function of horizontal centrifugal pump is to transport water and other liquids with physical and chemical properties similar to water, suitable for industrial and urban water supply and drainage, pressurized water supply in high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment supporting, the use of temperature T<80℃.
The main function of horizontal centrifugal pump is to transport water and other liquids with physical and chemical properties similar to water, suitable for industrial and urban water supply and drainage, pressurized water supply in high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment supporting, the use of temperature T<80℃.

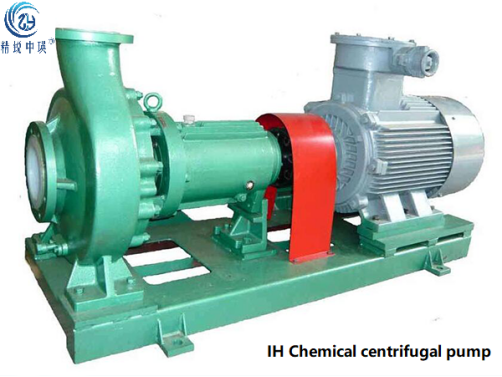

Horizontal chemical pump, for the transport of solid particles, corrosive, viscosity similar to water liquid, suitable for petroleum, chemical, metallurgy, power, paper, food and pharmaceutical and synthetic fibers and other departments, the use of temperature -20~C ~ +120℃.
Operating Conditions
1.Ambient temperature <40℃, relative humidity <95%
2.The volume content of solid particles in the conveying medium does not exceed 0.1% of the unit volume, and the particle size is < 0.2mm.
Note: If the medium is with fine particles, please indicate it when ordering, so that the manufacturer can use wear-resistant mechanical seals.
Product Feature
Low failure rate: simple and reasonable structure, the key parts of the international first-class quality; Supporting, the whole machine trouble-free working time greatly improved.
Watertight: cemented carbide seals of different materials ensure that there is no leakage in the transmission of different media.
Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.
Low noise: The pump supported by two low noise bearings runs smoothly, except for the weak sound of the motor, basically no noise.
Easy maintenance: replace seal, bearing, simple and convenient.
More economical: The exit can be left, right and upward in three directions, which is convenient for pipeline layout and installation and saves space.
Horizontal centrifugal pump Troubleshooting method
The pump does not produce water
a.The motor is running in the wrong direction and the speed of the motor is very slow.
b.The inlet and outlet valve is not opened, the inlet and outlet pipeline is blocked, and the runner impeller is blocked.
c.Suction pipe leak.
d.The inlet water supply is insufficient, the suction range is too high, and the bottom valve is leaking.
e.The pump is not filled with liquid. There is air in the pump chamber.
These are the reasons that may cause the pump to fail.Please get in touch with us by email zhongyingpump@163.com or complete our online enquiry form if you have any question about how to choose the right Horizontal centrifugal pump.
