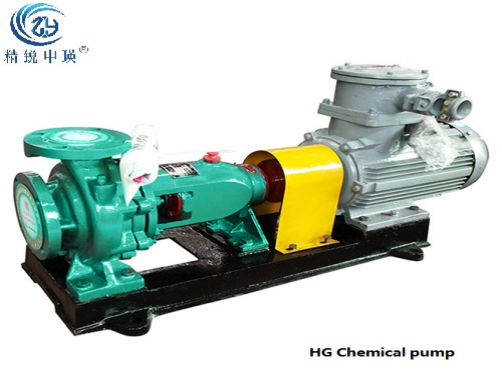

Horizontal centrifugal pump

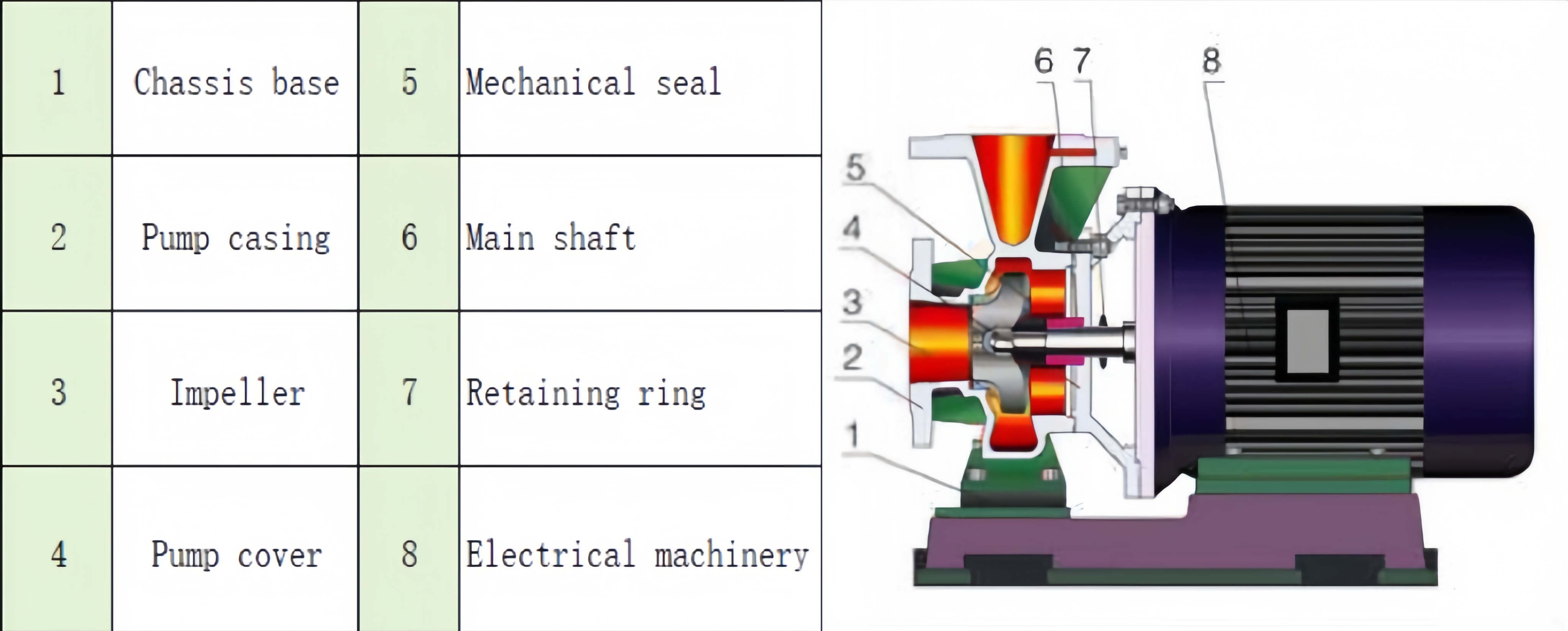

The Main components of the horizontal centrifugal Pump are Chassis base, Pump casing, Impeller, Pump cover, Mechanical seal, Main shaft, Retaining ring and Electrical machinery and other components.
1.Chassis base
Product Introduction: The chassis base provides a stable foundation for the industrial centrifugal pump. It supports the entire pump assembly and helps in reducing vibrations.
Work Principle: It holds the pump in place and distributes the weight evenly, ensuring smooth operation.
2.Pump Casing
Product Introduction: The pump casing encloses the impeller and other internal components of the pump. It protects the parts from external damage and directs the flow of fluid.
Work Principle: It channels the fluid in a specific direction and contains the pressure generated by the pump.
Material Characteristics: Commonly made of materials such as cast iron, stainless steel, or bronze, depending on the application. These materials offer strength and resistance to corrosion.
The Main components of the horizontal centrifugal Pump are Chassis base, Pump casing, Impeller, Pump cover, Mechanical seal, Main shaft, Retaining ring and Electrical machinery and other components.
1.Chassis base
Product Introduction: The chassis base provides a stable foundation for the industrial centrifugal pump. It supports the entire pump assembly and helps in reducing vibrations.
Work Principle: It holds the pump in place and distributes the weight evenly, ensuring smooth operation.
Material Characteristics: Made of durable materials like cast iron or steel, it is resistant to corrosion and wear.
Application Scenes: Widely used in industrial settings where stability and durability are crucial, such as factories, power plants, and water treatment facilities.
Application Scenes: Widely used in industrial settings where stability and durability are crucial, such as factories, power plants, and water treatment facilities.
2.Pump Casing
Product Introduction: The pump casing encloses the impeller and other internal components of the pump. It protects the parts from external damage and directs the flow of fluid.
Work Principle: It channels the fluid in a specific direction and contains the pressure generated by the pump.
Material Characteristics: Commonly made of materials such as cast iron, stainless steel, or bronze, depending on the application. These materials offer strength and resistance to corrosion.
Application Scenes: Found in various industrial processes where fluid transfer is required, such as chemical processing, oil and gas industry, and mining.
3.Impeller
3.Impeller
Product Introduction: The impeller is a key component of the centrifugal pump. It rotates to create centrifugal force and move the fluid.
Work Principle: As it spins, it accelerates the fluid and imparts energy to it, increasing the pressure and flow rate.
Material Characteristics: Can be made of materials like stainless steel, bronze, or plastic. The choice depends on the fluid being pumped and the operating conditions.
Application Scenes: Used in industries such as agriculture, construction, and manufacturing for pumping water, chemicals, and other fluids. The impeller is a crucial Pump Spare Part for the Model ZSS Horizontal Centrifugal Hot Water Pump Manufacturers and Suppliers in China.
4.Pump Cover
Product Introduction: The pump cover protects the impeller and other internal parts from dust and debris. It also helps in maintaining the pressure inside the pump.
Work Principle: It seals the pump housing and prevents leakage.
Material Characteristics: Made of materials similar to the pump casing, such as cast iron or stainless steel.
Application Scenes: Applicable in different industrial environments where protection of the pump is necessary.

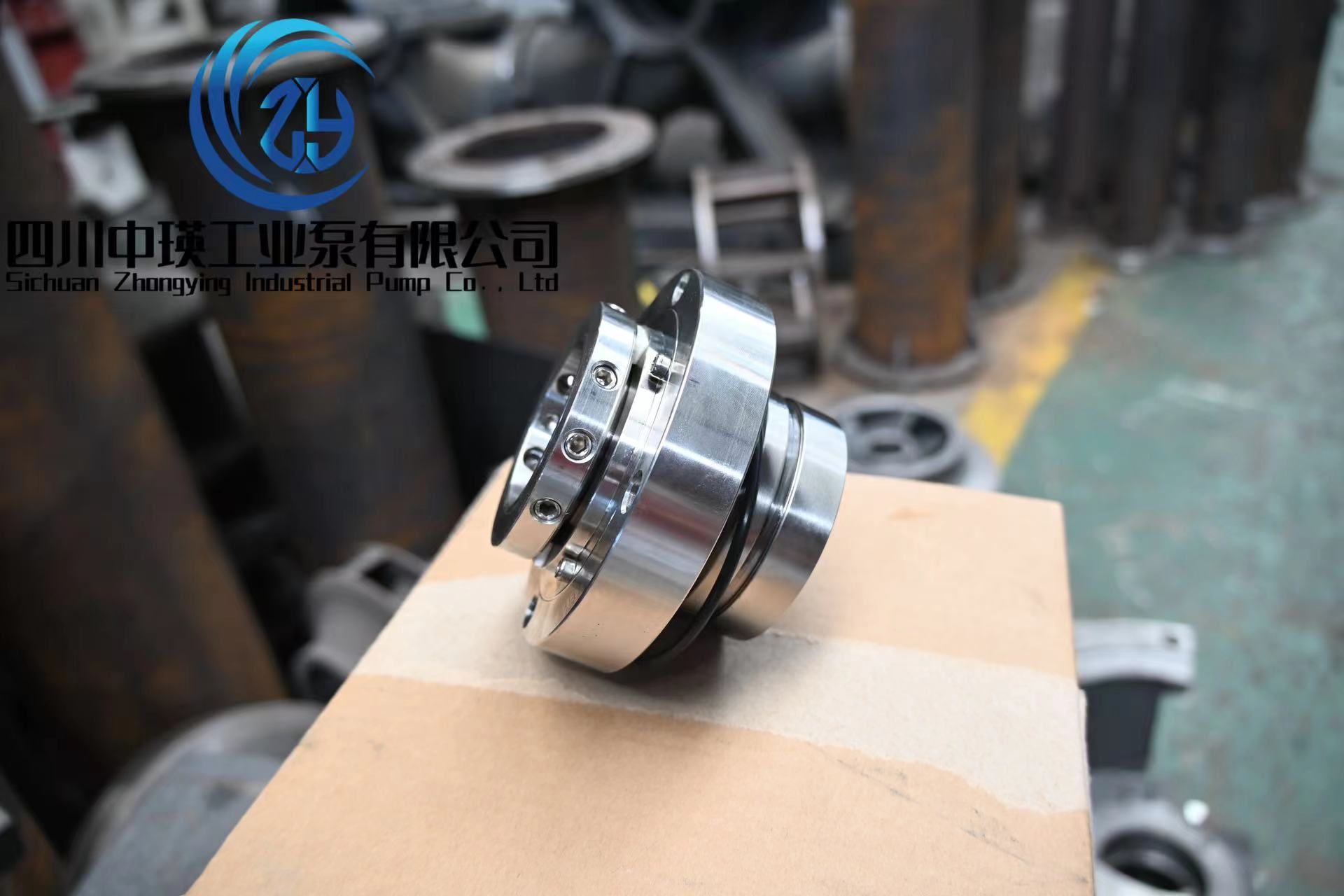

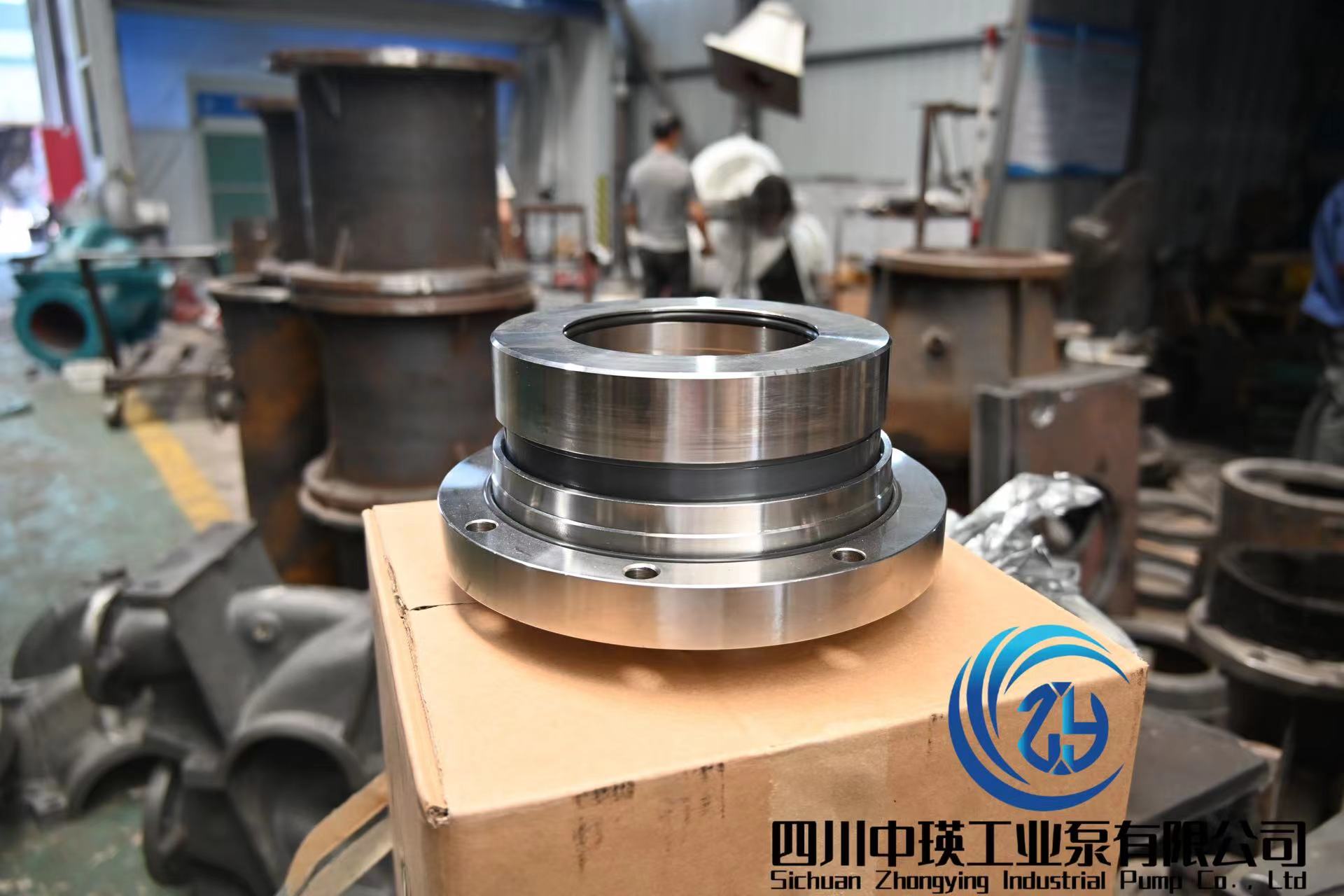

5.Mechanical Seal
5.Mechanical Seal
Product Introduction: The mechanical seal is used to prevent leakage between the rotating shaft and the stationary pump casing.
Work Principle: It consists of two mating faces that are pressed together to form a seal. The seal prevents fluid from escaping and air from entering the pump.
Material Characteristics: Made of materials like carbon, ceramic, and stainless steel. These materials offer high durability and resistance to wear and corrosion.
Application Scenes: Used in pumps handling various fluids, including corrosive and abrasive ones.
6.Main Shaft
Product Introduction: The main shaft is the central rotating component of the pump. It connects the impeller to the motor and transmits power.
Work Principle: It rotates under the influence of the motor and drives the impeller to create fluid flow.
Material Characteristics: Usually made of high-strength materials like stainless steel or alloy steel. These materials can withstand the mechanical stress and torque.
Application Scenes: Found in industrial pumps for different applications.
7.Retaining Ring
7.Retaining Ring
Product Introduction: The retaining ring holds components in place within the pump assembly.
Work Principle: It provides a mechanical stop to prevent movement of parts.
Material Characteristics: Made of materials with good strength and durability, such as spring steel.
Application Scenes: Used in various parts of the pump to ensure proper alignment and stability.
8.Electrical Machinery
8.Electrical Machinery
Product Introduction: The electrical machinery provides the power to drive the pump.
Work Principle: It converts electrical energy into mechanical energy to rotate the shaft and impeller.
Material Characteristics: Consists of components like coils, magnets, and a housing. The materials are selected for efficiency and durability.
Application Scenes: Used in industrial settings where electrical power is available.
At Zhongying, we offer many types and configurations of industrial pumps to meet the specific fluid handling requirements of different industries to ensure the safe and efficient delivery of fluids. By selecting the right industrial pump for the fluids being applied and handled, industries can increase productivity, reduce downtime, and maintain the quality and safety of their products. If you have any questions about how to choose the right industrial pump, please contact us by email at zhongyingpump@163.com or fill out our online inquiry form.
At Zhongying, we offer many types and configurations of industrial pumps to meet the specific fluid handling requirements of different industries to ensure the safe and efficient delivery of fluids. By selecting the right industrial pump for the fluids being applied and handled, industries can increase productivity, reduce downtime, and maintain the quality and safety of their products. If you have any questions about how to choose the right industrial pump, please contact us by email at zhongyingpump@163.com or fill out our online inquiry form.
